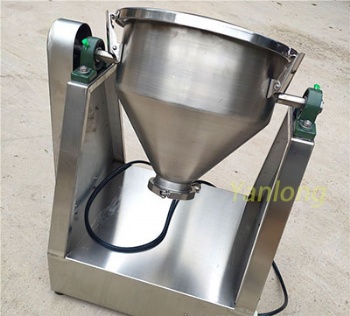

flat lab mixer

Laboratory flat-cone mixer refers to a mixer whose rotating drum can move in two directions at the same time. The two movement directions are the rotation of the rotating drum, and the rotating drum swings with the swing frame. The material to be mixed in the drum rotates, flips, and mixes with the drum. At the same time, the mixing movement occurs from left to right and back and forth with the swing of the drum. Under the combined action of these two movements, the material is fully obtained in a short time. Blended.

working principle:

It is composed of three parts: rotating drum, mixing rack and frame. The rotating drum is mounted on the swing frame, supported by four rollers and axially positioned by two blocking wheels. Among the four supporting rollers, two of the transmission wheels are driven by the rotating power system to make the rotating drum rotate. The swing frame is driven by a set of crank swing rod mechanism. The crank swing rod mechanism is installed on the frame. The swing frame is supported on the frame by the bearing assembly, so that the drum rotates and participates in the swing at the same time, so that the materials in the cylinder can be fully mixed .

Features:

1. The inside of the barrel is mirror-polished. Compared with the traditional mixer, there is no accumulation of material at the bottom, no pollution, convenient washing, and it truly meets the requirements.

2. When working, under the dual action of the rotating mechanism and the stirring mechanism, the charging barrel is rotated while being stirred by the internal paddle, so that the materials in the barrel can be fully mixed.

3. Simple structure, low failure rate, stable operation, safe operation, no noise, easy to clean, and meet the requirements.

4. Small size and easy to move.

Inside structure of flat cone lab mixer
